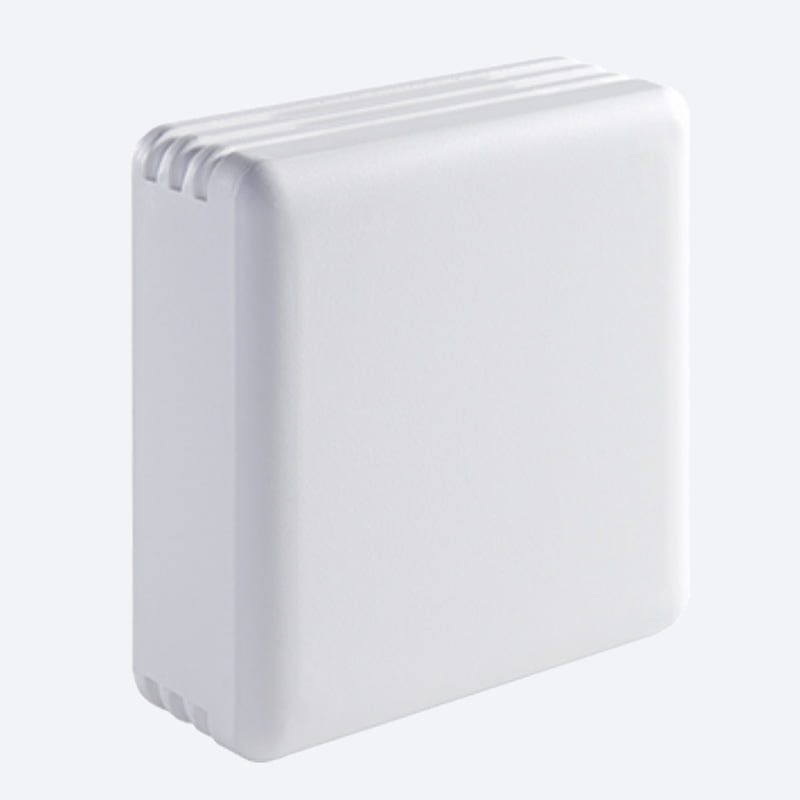

STC-KNX EnOcean Gateway
Non-returnable
£344.14
Tags:
Bidirectional gateway between EnOcean wireless devices and the KNX bus. With this device, commands and measured values from EnOcean wireless sensors can be transmitted to the KNX bus, for example to control KNX actuators. EnOcean wireless actuators can also be controlled via KNX. The STC-KNX supports the encrypted wireless communication with security-enabled EnOcean devices.
The STC-KNX supports more than 100 device profiles (EEP EnOcean Equipment Profile) within 32 channels, allowing the simple and secure connection of different EnOcean sensors and actuators to KNX installations
Choose Quantity
Product Details
STC-KNX Enocean Gateway.
Technical Details
- Network technology: KNX (TP)
- Radio technology: EnOcean (IEC 14543-3-10), transmission power <10 mW.
- Frequency: 868 MHz.
- Antenna: internal transmitting/receiving antenna.
- Data transmission: bidirectional.
- Power supply: Supply via BUS, 29 V = SELV.
- Power consumption: max. 12 mA
- Enclosure: PC, white.
- Protection (IP): IP20 according to EN 60529.
- Electrical connection: Connector for KNX Bus.
- Ambient condition: -5..+45 °C, max. 85% rH non-condensing.
- Weight: approx. 90 g.
- Mounting: surface mounted on flush-mounting box (Ø=60 mm).
